PRODUCT DETAILS
TOUGHBOOK 55 with Windows 10 Pro, magnesium chassis, flexible configurations and universal bay is the most versatile 14" rugged. Toughbook ever built, but doesn't compromise on durability, with an unique 'honeycomb' design for improved strength and splash resistant. In terms of flexibility , the TOUGHBOOK 55 is equally outstanding. It offers a huge array of flexible configuration options, making it easier for customers to have exactly the device they want.
KEY FEATURES
- Intel® CoreTM Ì5-1U5G 7 / Ì7-1185G 7 VPro Processor
- Windows 10 Pro/free upgrade to Windows 11
- 14" Active Matrix (TFT) colour LCD
- Lightweight and slim design
- BGB RAM and 256GB SSD as standard
- 2x USB 3.2, 1x thunderbolt 4,1x HOMI, 1x LAN and micro SDCX
- Front and Rear Expansion Slot
- TOUGHBOOK Universal Bay
- Long battery life of up to 38 hours (MobileMark 2014]
- Dedicated Global Positioning and 4G LTE optional
- -29° C to +60° C operating temperature
- Robust honeycomb-style magnesium casing wit h carry handle
- IP53*
- Withstands drops from a height of 91cm*
- Shock and vibration protected for vehicle docking
- Designed for MIL-STD810H. Test by an independent third party lab following 2nd half of 2019
- 'The Windows 11 Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware
Meet the Updated TOUGHBOOK 55
We recently updated the award-winning TOUGHBOOK 55 to provide mobile workers with even more flexibility than before.

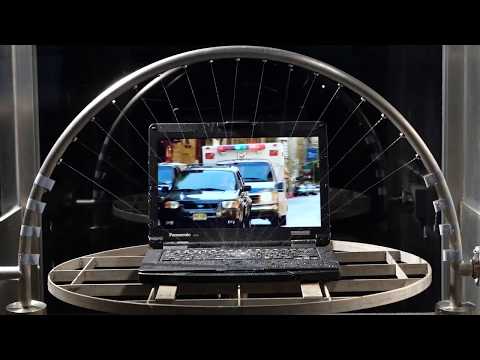

TOUGHBOOK 55 Water Test
The TOUGHBOOK 55 is IP53 certified.

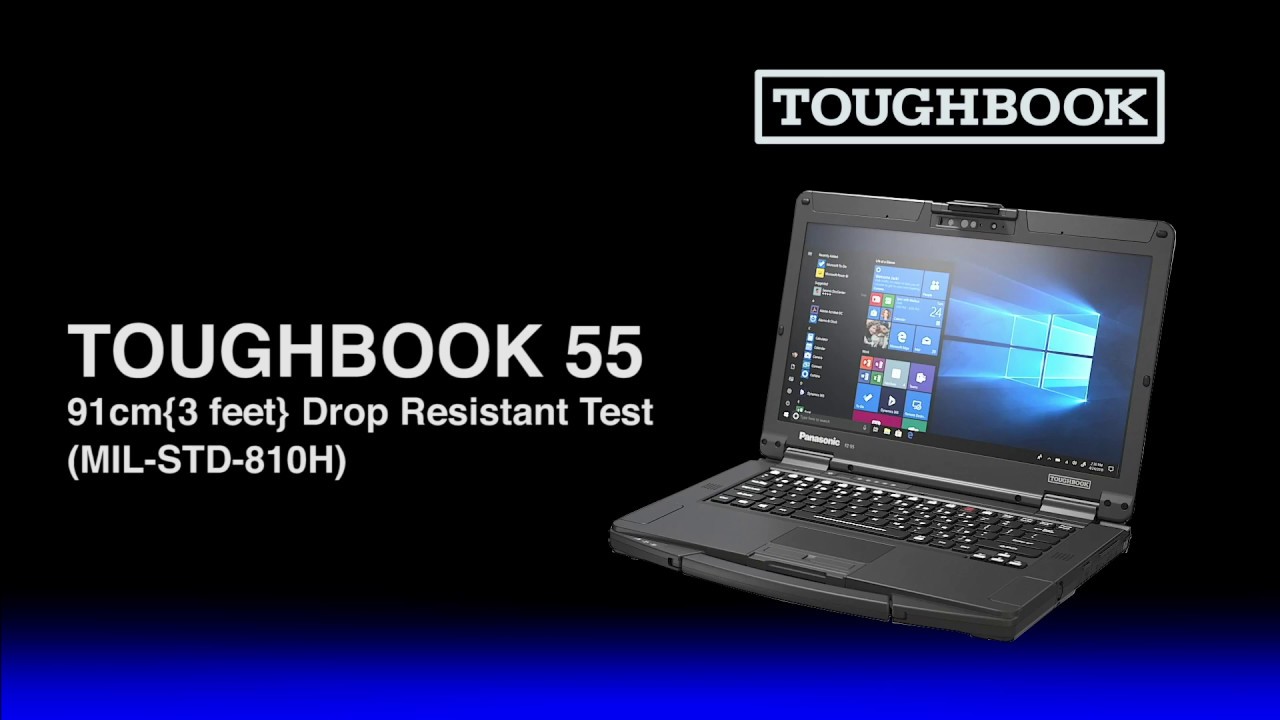

TOUGHBOOK 55 Drop Test
Testing the TOUGHBOOK 55 rugged laptop.

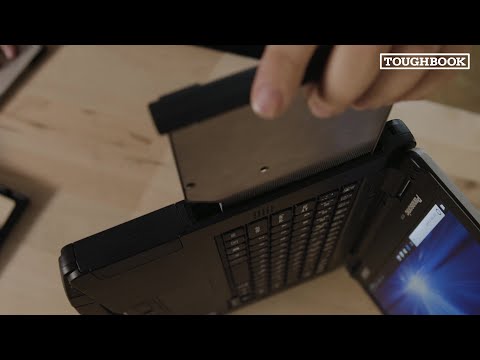

SWITCH. FIT. CLICK. - Introduction TOUGHBOOK 55 – MAKE IT YOURS
Users can modify their semi-rugged TOUGHBOOK 55 on the move for new work challenges
What has Toughbook 55 in common with ice-cream?
What has Toughbook 55 in common with ice-cream?
TOUGHBOOK 55 by N. Dezen, VP, Device Partner Sales Consumer and Device Sales, Microsoft Cooperation
Endorsement video TOUGHBOOK 55 by Nicole Dezen, Vice President, Device Partner Sales Consumer and Device Sales, Microsoft Cooperation
TOUGHBOOK 55 by G.M. Bryant, Senior VP, GM of the Client Computing Group Intel Corp.
TOUGHBOOK 55 by G.M. Bryant, Senior VP, GM of the Client Computing Group Intel Corp.
TOUGHBOOK 55 Vibration Test
TOUGHBOOK 55 Vibration Test
TOUGHBOOK 55 – Switch.Fit.Click.
The unique device concept explained by Brendan Martin
| Mobile Computing Platform | Intel® Core⢠i5 1145G7 vPro⢠Processor |
| Operating System | Windows 11 Pro / Windows 10 Downgrade Model available |
| RAM | 8GB DDR4 RAM (max. 64GB) |
| Graphic Chip | Intel® UHD Graphics, support Intel® Iris® Xe Graphics when 2 RAM Modules installed |
| Storage | 256GB NVMe OPAL SSD (with heater) |
| LCD | 14" Active Matrix (TFT) colour LCD 1366 x 768 pixels (HD) |
| Bluetooth⢠| 5.1 |
| Wireless LAN | Intel® Dual Band Wireless-AC 9560 |
| Mobile Broadband* | 4G LTE, EM7455, eSIM support |
| Global Positioning* | u-blox NEO-M8N (supports GPS, GLONASS, Beidou, Galileo) |
| LAN | IEEE 802.3 10Base-T / IEEE 802.3u 100BASE-TX / IEEE 802.3ab 1000BASE-T (2nd GLAN optional) |
| Sound | WAVE and MIDI playback, Intel® High Definition Audio subsystem support |
| Enhanced Voice Recognition* | 4 Microphones (included in Front Camera) |
| Front Camera* | 2 MP with IR / privacy shutter (Windows Hello compliant) |
| Micro SDXC Memory Card | x1 |
| USB 3.2 | x2 |
| Thunderbolt 4 | x1 |
| USB 3.1 type C PD | x1 |
| HDMI | x1 |
| Headset | x1 |
| DC In | x1 |
| Port Replicator | x1 |
| Dual Path Through Connector* | x1 |
| TOUGHBOOK Universal Bay** | 2nd SSD, Smart Card Reader, DVD Multi Drive, Blu Ray Drive |
| Front Expansion Slot** | 2nd Battery, Fingerprint Reader, HF-RFID Reader (Contactless Smart Card), Smart Card Reader |
| Rear Expansion Slot** | VGA + True Serial + 4th USB 3.2, VGA + True Serial + 2nd native GLAN, VGA + True Serial + Rugged USB 2.0 |
| AC Adapter | Input: 100V - 240V AC, 50Hz/ 60Hz, Output: 15.6V DC, 7.05A |
| Battery | Lithium-Ion 10.8V, 6500mAh (typ.), 6300mAh (min.) |
| Battery Life | Approx. 19 hours (Mobile Mark⢠2014)Approx. 38 hours with 2nd battery (Mobile Mark⢠2014) |
| Power Management | Standby function, ACPI BIOS |
| Hot Swap* | With 2nd Battery |
| Dimensions (WxHxD) | 345mm x 272mm x 32.8mm |
| Weight | Approx. 2.08 kg |
| Drop Resistance*** | 91cm |
| Dust Resistance*** | IP5x |
| Water Resistance*** | IPx3 |
| Operating Temperature*** | -29°C to +60°C |
| Included in the box | Power Supply, Power Cord, Display cleaning cloth and User Manual |
| * | Optional |
| ** | Exclusive Option, pre-configured or accessory |
| *** | Tested by an independent third party lab following MIL-STD-810H and IEC 60529 |
Image Data
Image Data
Image Data
Image Data
Brochures
toughbook-55
Case Studies
Dorset & Wiltshire Fire and Rescue Servi...
Case Studies
Dp world improves productivity and servi...
Case Studies
Machine control and Panasonic TOUGHBOOK...
Case Studies
panasonic and safety at bologna airport....
Case Studies
Securely connecting Centrica field engin...
Case Studies
Siemens aims to improve train availabili...
Spec Sheets
toughbook-55-spece-sheets
Spec Sheets
toughbook-55-spece-sheets-2
Meet the Updated TOUGHBOOK 55
We recently updated the award-winning TOUGHBOOK 55 to provide mobile workers with even more flexibility than before.
TOUGHBOOK 55 Water Test
The TOUGHBOOK 55 is IP53 certified.
TOUGHBOOK 55 Drop Test
Testing the TOUGHBOOK 55 rugged laptop.
SWITCH. FIT. CLICK. - Introduction TOUGHBOOK 55 – MAKE IT YOURS
Users can modify their semi-rugged TOUGHBOOK 55 on the move for new work challenges
What has Toughbook 55 in common with ice-cream?
What has Toughbook 55 in common with ice-cream?
TOUGHBOOK 55 by N. Dezen, VP, Device Partner Sales Consumer and Device Sales, Microsoft Cooperation
Endorsement video TOUGHBOOK 55 by Nicole Dezen, Vice President, Device Partner Sales Consumer and Device Sales, Microsoft Cooperation
TOUGHBOOK 55 by G.M. Bryant, Senior VP, GM of the Client Computing Group Intel Corp.
TOUGHBOOK 55 by G.M. Bryant, Senior VP, GM of the Client Computing Group Intel Corp.
TOUGHBOOK 55 Vibration Test
TOUGHBOOK 55 Vibration Test
TOUGHBOOK 55 – Switch.Fit.Click.
The unique device concept explained by Brendan Martin
Easy and intuitive handling
Slim, lightweight, and easy to carry via its handle, the TOUGHBOOK 55 is designed to be taken anywhere. Every single detail has been developed to fit the way you work. From front cameras, a loud stereo speaker for ease of communication over sirens, and enhanced voice recognition while driving, to a dedicated GPS, backlit keyboard, and all-weather, high-brightness touchscreen.
No more device failures, downtime or disturbed work
Engineered from the ground up to be used on-the-go and in harsh environments, tested to military standard (MILSTD810H) and officially IP53-rated for water and dust resistance. The TOUGHBOOK 55 honeycomb design means it can also survive drops, knocks, vibrations, extreme temperatures and more.
Add in 4G LTE and dual pass-through antenna connector for optimised connectivity; plus, up to 38-hours of battery life (thanks to optional battery hot-swap), and your team will always be able communicate, access critical info and report in real time when on the move.
A more sustainable solution
Because it’s ready to adapt to the ever-changing demands of businesses and users, the TOUGHBOOK 55 is designed to last the long-haul. Add in features as your needs change in the future…without having to overhaul your entire ecosystem. Individual parts can be repaired or replaced in isolation…without affecting the unit as a whole. So, you can reduce downtime, your carbon footprint, and your budget spend.
Enterprise security – straight out of the box
The TOUGHBOOK 55 is one of the first notebooks on the market to include a new-generation security platform, limiting the risk of even highly advanced cyber-attacks.
Microsoft Secured-core PC technology provides device, identity and data protection at all levels – hardware, firmware and software. The device’s Windows Hello-capable webcam enables biometric user authentication, while quick-release SSD, and smartcard and HF-RFID reader options help further enhance mission-critical data security.
Complementary accessories, vehicle mounts and docks
Rugged and rigorously tested, for maximum convenience and safety out in the field. Built-for-purpose and designed to match the way you work.
